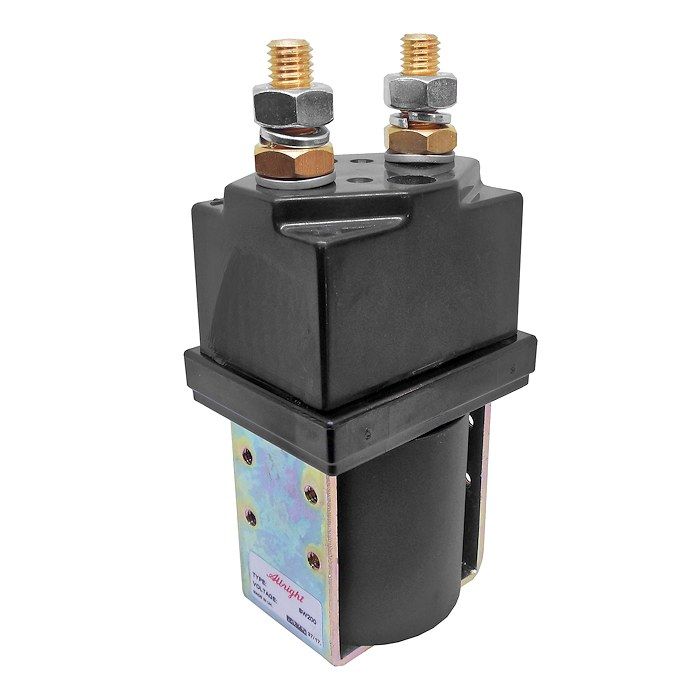

Albright SW200-262 Heavy Duty DC Contactor

48V / 400A, SPST (single pole single throw)

Overview

The SW200 series contactors have been designed for direct current loads, particularly for motors used on electric vehicles such as industrial trucks, airport tractors, and electric forklift, etc.

They have double breaking main contacts with silver alloy contact tips, which are weld resistant, hard wearing and have excellent conductivity.

The SW200-262 contactor is often used as lifting pump driving motor switch relay.

Specifications:

• Manufacturer: ALBRIGHT
• Model: SW200-262 (Zapi Model: B4SW31)
• Contactor Type: Single Pole Single Throw, On/Off Type
• Main Circuit Current Rating: 400A
• Main Circuit Voltage Rating: 48V DC Contactor
• Closed contacts housing
• Weight: about 1.35kg

The SW200-262 contactors are wildly applied in 36V & 48V DC systems. The maximum recommended contact voltage for SW200 is 96VDC. For more details of voltage options,

We supply also the mounting bracket for SW200 / SW200B contactors:
